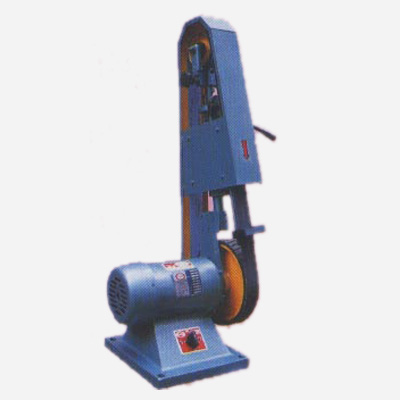

ABRASIVE BELT GRINDERS
Versatile machine generally requested for Forge Shops, Press Shops, Ferrous & non Ferrous Foundries, Fabrication Shops, Engineering Industries, Plastic & Glass Industries, Rubber & Leather Industries and wood Industries.
Rate of material removal is optimum. Excellent ground finish obtained.
High rate of production.
Machines available in four models i.e. Single Ended, Double Ended, Lathe Mounting and Multipurpose Combination machine.
Lathe Mounting belt grinding machines are designed to grind and polish shafts, rollers, cyclinders for plastic industries, textile screw etc. in this model the job will rotate between centers and the machine is mounted on lathe carriage.
Combination Multipurpose machines are universal machines where both wheel grinding and belt grinding jobs can be carried out.
Use of best quality stamping and diecast rotors.
Dynamically Balanced rotor minimise vibrations and ensure smooth running.
Telescopic tendering arm for belt tensioning.
Construction of the machines are made sturdy and robust to offer vibration free performance.
Machine provided with one no. Abrasive Belt, Serrated rubber contact wheel, Rotaty Switch / Starter and Safety Belt Guard.
Combination Multipurpose machine is with abrasive belt assembly on one side and Grinding Wheel on other side.
Machines are available in Bench type or Pedestal type.
Use of high quality grease for lubrication. RECOMMENDED USE OF GREASE LITHON 3 OR EQUIVALENT.
All machines are subject to rigid quality control tests.
Machines of different voltage and different frequency can be supplied against specific orders.
All machines carry warranty (except ball bearings) against any manufacturing defect as per the warranty terms prevailing of the company. No warranty for wear and tear items.
SPECIFCATIONS FOR ABRASIVE BELT GRINDERS
| MODEL | TYPE | DESCRIPTION | H.P. | PH | R.P.M | CENTER HEIGHT | WHEEL SIZE | BELT SIZE |
|---|---|---|---|---|---|---|---|---|
| ABG-1 | BENCH | SINGLE SIDE | 1 | 1 | 2800 | 195 | 200 x 50 | 2000 x 50 |
| ABG-1 | BENCH | SINGLE SIDE | 1 | 1 | 2800 | 195 | 200 x 50 | 2000 x 50 |
| ABG-11 | BENCH | SINGLE SIDE | 1 | 3 | 2800 | 195 | 200 x 50 | 2000 x 50 |
| ABG-12 | BENCH | SINGLE SIDE | 2 | 3 | 2800 | 195 | 200 x 50 | 2000 x 50 |
| ABG-1 | BENCH | SINGLE SIDE | 1 | 1 | 2800 | 195 | 200 x 50 | 2000 x 50 |
| ABG-11 | BENCH | SINGLE SIDE | 1 | 3 | 2800 | 195 | 200 x 50 | 2000 x 50 |
| ABG-12 | BENCH | SINGLE SIDE | 2 | 3 | 2800 | 195 | 200 x 50 | 2000 x 50 |
| ABG-13 | BENCH | SINGLE SIDE | 3 | 3 | 2800 | 195 | 200 x 50 | 2000 x 50 |
| ABG-21 | BENCH | SINGLE SIDE | 2 | 3 | 2800 | 195 | 200 x 50 | 2000 x 50 |
| ABG-22 | BENCH | SINGLE SIDE | 3 | 3 | 2800 | 195 | 200 x 50 | 2000 x 50 |
| ABG-61 | PEDESTAL | SINGLE SIDE | 1 | 3 | 2800 | 935 | 200 x 50 | 2000 x 50 |
| ABG-62 | PEDESTAL | SINGLE SIDE | 2 | 3 | 2800 | 935 | 250 x 50 | 2000 x 50 |
| ABG-63 | PEDESTAL | DOUBLE SIDE | 2 | 3 | 2800 | 935 | 250 x 50 | 2000 x 50 |
| ABG-64 | PEDESTAL | SINGLE SIDE | 3 | 3 | 2800 | 935 | 250 x 50 | 2000 x 50 |
| ABG-65 | PEDESTAL | DOUBLE SIDE | 3 | 3 | 2800 | 935 | 250 x 50 | 2000 x 50 |
| ABG-111 | BENCH | LATHE MOUNTING | 1 | 1 | 2800 | 250 | 200 x 50 | 2000 x 50 |
| ABG-131 | BENCH | LATHE MOUNTING | 1 | 1 | 2800 | 250 | 200 x 50 | 2000 x 50 |
| ABG-132 | BENCH | LATHE MOUNTING | 2 | 3 | 2800 | 250 | 200 x 50 | 2000 x 50 |
| ABG-133 | BENCH | LATHE MOUNTING | 3 | 3 | 2800 | 250 | 250 x 50 | 2000 x 50 |
| ABG-231 | BENCH | COMBINATION | 2 | 3 | 2800 | 195 | 250 x 50 | 2000 x 50 |
| ABG-232 | PEDESTAL | COMBINATION | 2 | 3 | 2800 | 935 | 250 x 50 | 2000 x 50 |
